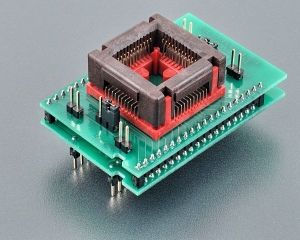

DIL40/PLCC44 ZIF W-EPROM / MCS51 Adaptör Soketi

Elnec
Fiyat
:
89,00 USD + KDV
KDV Dahil
:
105,02 USD
Paylaş:
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • DIL40/PLCC44 ZIF W-EPROM / MCS51 Adaptör Soketi

    • Special adapter, assigned for microcontrollers '51 family and 16-bit EPROMs
    • operation (mechanical) life of ZIF socket - 10.000 actuations
    • made in Slovakia
    Ord. no.70-0067
    SocketZIF PLCC44, open top type
    Bottom2 rows, 2x 20 pins, square, 0.6x0.6mm, rows spacing 600mil
    ClassSpecialized
    SubclassMCS-51

    Wiring is:
    For W-EPROM
    PLCC12345678910111213141516171819202122
    DILNC1234567891011NC121314151617181920
    PLCC23242526272829303132333435363738394041424344
    DILNC212223242526272829NC3031323334353637383940
    For MCS51
    PLCC12345678910111213141516171819202122
    DILNC12345678910NC11121314151617181920
    PLCC23242526272829303132333435363738394041424344
    DILNC21222324252627282930NC31323334353637383940
    Adapter manual
    • Set jumpers to correct position - to uP51 for MCS51 or to EPR for EPROM.
    • NC pins are 1,12,23,34 for MCS51 or 1,13,23,33 for EPROM. If it is necessary, connect NC pins 1, 23, 24 to GND and 12 to VCC.
    • Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
    • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
    • Pull a lid (the upper - moving - part of ZIF) of programming adapter a bit up to gain more reliable contact
    • Visually check interconnection between device and adapter ZIF socket. If everything looks OK, the device is ready for programming.
    • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ZIF socket can damage the programmed device.
    • To take out the device push the top of adapter ZIF socket and remove device from it.
    • When you finish work with adapter, remove it from the device programmer ZIF socket.
    • Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.
    • For handling with the device we recommended to use a vacuum pick up tool.
    • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%..80%, non condensing.


    Accepted package(s)
    PLCC44Package
