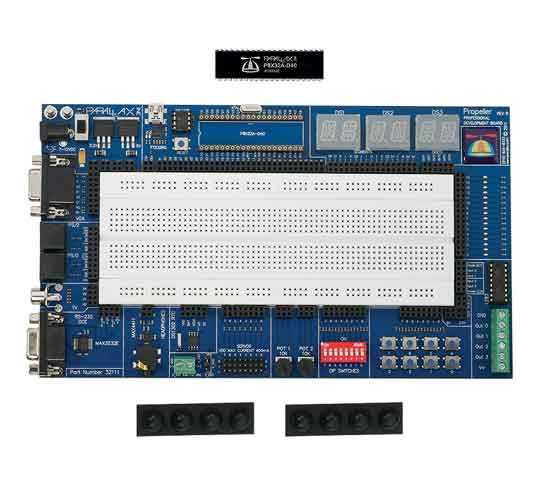

Propeller Professional Development Board - 1

Propeller Professional Development Board

Ürün Kodu: T732
99,00 USD + KDV
KoleksiyonFiyat Alarmı

Propeller Professional Development Board

The Propeller Professional Development Board (PPDB) is a high-quality, fully-integrated development platform for the Propeller P8X32A multicore microcontroller.  A wide variety of peripheral connectors and typical I/O devices such as LEDs and buttons are built into the board, providing the developer with an ideal platform for rapid Propeller project development.

Key Features:

  • On-board voltage regulators provide 5 V and 3.3 V supplies for your application circuits
  • Contains the most common I/O interfaces for the Propeller chip on one board
  • Large breadboard area gives plenty of room for additional components and devices
  • 24LC256 32 KB EEPROM included
  •  Propeller Chip - 40-Pin DIP Chip
  • 5 MHz crystal included
  • 5V and 3.3V regulators on board
  • Built-in USB programming/communication interface
  • Six blue 16-segment LED displays
  • Sixteen blue discrete LEDs
  • L293D high-current driver for motors, solenoids, etc.
  • Eight active-low pushbuttons with 3.3V pull-ups
  • Eight active-low DIP switches with 3.3V pull-ups
  • Two 10 k-ohm potentiometers
  • Eight servo headers with selectable on-board/external power source
  • DS1302 real-time clock with battery backup/charging capability
  • MAX4411 headphone amplifier with 1/8" stereo audio jack
  • MAX3232E RS-232 DCE interface
  • RCA jack for broadcast TV or composite video
  • Two PS/2 ports with 5V power and 3.3V pull-up resistors on clock/data lines
  • 15-pin HD D-sub connector for VGA monitor
  • Two ground terminals for logic analyzer/oscilloscope probe ground clips
  • Voltage requirements: 7–12 VDC
  • Current requirements: 59 mA quiescent current (@ 12 V)
  • Communication: USB serial programming interface (FT232R)
  • Dimensions: 9 x 5.25  x 0.75 in (23 x 13.5 x 2 cm)
  • Operating temp range: 32 to 158°F (0 to 70°C)

Propeller Professional Development Board Guide - 1.55 MB | updated: 30 Apr 2014 - 3:38 pm
Propeller Professional Development Board Schematic - 92.3 KB | updated: 04 Oct 2012 - 4:17 pm
