Super Carrier Board

Parallax
Fiyat
:
40,00 USD + KDV
KDV Dahil
:
47,20 USD
Paylaş:
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Super Carrier Board

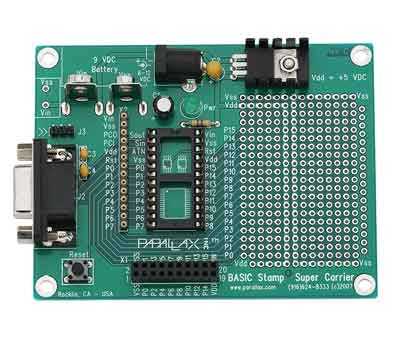

    Low-cost through-hole development board for the BASIC Stamp 1 (BS1-IC) and the 24-pin BASIC Stamp 2 series microcontrollers (BS2-IC, BS2E-IC, BS2SX-IC, BS2P24, BS2PE, and BS2PX24), and Javelin Stamp modules. This board is often used for experiments and permanent BASIC Stamp projects soldered to the through-hole area. A number of protective enclosures are also available to finalize your project.

    Key Features:

    • 14-pin SIP socket and 24-pin DIP socket supports BS1 and all 24-pin BASIC Stamp 2 microcontrollers
    • 3-pin programming connection for BASIC Stamp 1 programing via BASIC Stamp 1 Serial Adapter (#27111)
    • Serial DB9 connector for programming all BASIC Stamp 2 modules
    • 9-volt battery clips and power jack provide flexible power supply options
    • Monentary-push button for resetting BASIC Stamp
    • Solder-hole area (1.5" x 2.0") arranged to easily support servos, 300 and 600 mil DIP ICs, DB9, DB25, RJ-11 connectors
    • Reset Button
    Details:

    • 14-pin and 24-pin sockets
    • Accessory socket
    • Permanent circuit solder area
    • Power jack and 9-volt battery power options
    • Voltage requirements: 6 to 12 VDC
    • Current requirements: depends on project area circuit
    • Communication: Serial
    • Dimensions: 4.00 x 3.00 x 0.65 in (102 x 76.2 x 16.5 mm)
    • Operating temp range: -40 to +185 °F (-40 to +85 °C)

    DownloadDetailsMore Info
    Parallax IDE for Chrome - 1.56 MB | updated: 30 Oct 2015 - 2:16 pm
    BASIC Stamp Manual - 5.2 MB | updated: 24 Sep 2012 - 2:06 pm
    Super Carrier Board Schematic - 70.22 KB | updated: 20 Sep 2012 - 5:03 pm
