MAX3421EVKIT-1

MAX3421EVKIT-1

MAX3421E USB 2.0 Host/Controller Interface Evaluation Board - Evaluation Kit for the MAX3421E/MAX3420E

Product Details

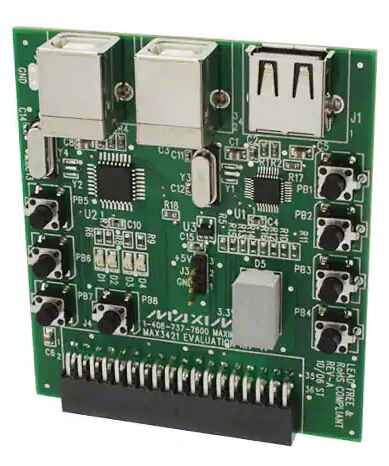

The MAX3421 evaluation kit-1 (EV kit-1) provides a proven design to evaluate the MAX3421E USB peripheral controller with SPI™ interface. The EV kit contains both a MAX3421E USB host & peripheral controller and a MAX3420E USB peripheral controller for user evaluation and development. Connector J4 is wired to plug into a Keil MCB2130 development board, which contains a Philips ARM controller (LPC2318). The design uses two separate SPI ports to provide independent operation of the two USB controllers (MAX3421E and MAX3420E).

The MAX3421 EV kit-1 adds USB functionality to any microcontroller, microprocessor, DSP, CPLD, FPGA, or ASIC with an SPI master interface, or five GPIO lines.

The EV kit-1 board comes with the MAX3421EEHJ+ and MAX3420EECJ+ installed.

Key Features

• Ideal USB Training and Debugging System
• Mates to Keil MCB2130 Development Board
• Can Be Wired into User Systems
• MAX3421E Can Be Used as USB Host or Peripheral
• MAX3420E Provided On-Board as a Test Peripheral
• MAX3420E Can be Used to Develop USB Peripheral Code
• Cameras
• Custom USB Devices
• Desktop Routers
• Embedded Systems
• Instrumentation
• Medical Devices
• Microprocessors and DSPs
• MP3 Players
• PDAs
• PLCs
• Set-Top Boxes
