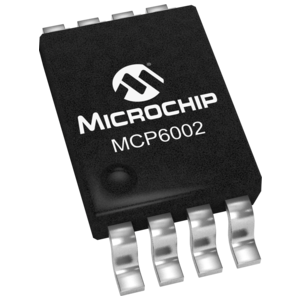

MCP6002-I/SN

MCP6002-I/SN

Specifications

Manufacturer:          Microchip

Product Category:   Operational Amplifiers - Op Amps

RoHS: Details

Mounting Style:        SMD/SMT

Package/Case:        SOIC-8

Number of Channels:         2 Channel

Supply Voltage - Max:        5.5 V

GBP - Gain Bandwidth Product:  1 MHz

Output Current per Channel:        23 mA

SR - Slew Rate:       0.6 V/us

Vos - Input Offset Voltage: 4.5 mV

Supply Voltage - Min:         1.8 V

Minimum Operating Temperature:           - 40 C

Maximum Operating Temperature:          + 125 C

Ib - Input Bias Current:       1 pA

Operating Supply Current: 100 uA

Shutdown:    No Shutdown

CMRR - Common Mode Rejection Ratio:          60 dB

en - Input Voltage Noise Density: 28 nV/sqrt Hz

Series:           MCP6002

Qualification: AEC-Q100

Packaging:   Tube

Amplifier Type:         Low Power Amplifier

Height:           1.25 mm

Length:          4.9 mm

Product:         Operational Amplifiers

Supply Type: Single

Technology: CMOS

Type:  1 MHz, Low Power Op Amp

Width: 3.9 mm

Brand:            Microchip Technology

In - Input Noise Current Density:  0.0006 pA/sqrt Hz

Moisture Sensitive: Yes

Operating Supply Voltage: 1.8 V to 5.5 V

Product Type:           Op Amps - Operational Amplifiers

PSRR - Power Supply Rejection Ratio:  86 dB

Factory Pack Quantity:       100

Subcategory:            Amplifier ICs

Voltage Gain dB:     112 dB

Unit Weight:  540 mg
