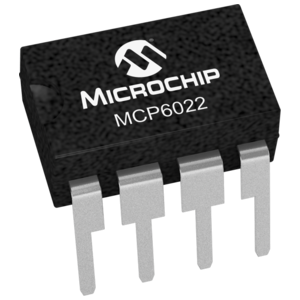

MCP6022-E/P

MCP6022-E/P

Specifications

Manufacturer:          Microchip

Product Category:   Operational Amplifiers - Op Amps

RoHS: Details

Mounting Style:        Through Hole

Package/Case:        PDIP-8

Number of Channels:         2 Channel

Supply Voltage - Max:        5.5 V

GBP - Gain Bandwidth Product:  10 MHz

Output Current per Channel:        22 mA

SR - Slew Rate:       7 V/us

Vos - Input Offset Voltage: 250 uV

Supply Voltage - Min:         2.5 V

Minimum Operating Temperature:           - 40 C

Maximum Operating Temperature:          + 125 C

Ib - Input Bias Current:       5 nA

Operating Supply Current: 1 mA

Shutdown:    No Shutdown

CMRR - Common Mode Rejection Ratio:          70 dB

en - Input Voltage Noise Density: 8.7 nV/sqrt Hz

Series:           MCP6022

Qualification: AEC-Q100

Packaging:   Tube

Amplifier Type:         General Purpose Amplifier

Height:           3.3 mm

Length:          9.46 mm

Product:         Operational Amplifiers

Supply Type: Single

Technology: CMOS

Width: 6.35 mm

Brand:            Microchip Technology

In - Input Noise Current Density:  0.003 pA/sqrt Hz

Operating Supply Voltage: 2.5 V to 5.5 V

Product Type:           Op Amps - Operational Amplifiers

PSRR - Power Supply Rejection Ratio:  74 dB

Factory Pack Quantity:       60

Subcategory:            Amplifier ICs

Voltage Gain dB:     110 dB

Unit Weight:  1 g
