Propeller Demo Board

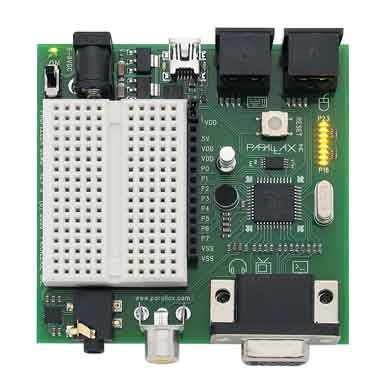

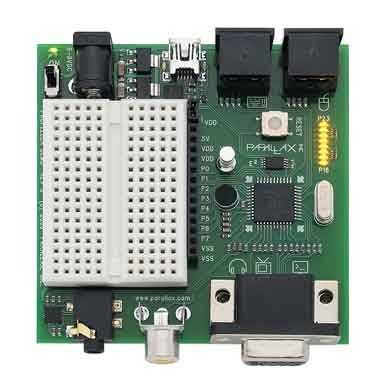

The Propeller Demo Board demonstrates the Propeller's varied capabilities in a compact and fun platform. You can use it to learn Propeller programming and then develop full-blown applications which generate video and sound, and utilize mice and keyboards. All the requisite power supply and USB programming interfaces are provided for you. Eight unused I/O pins are available for experimentation. Kit includes Propeller Demo Board.

• Powerful 8-core 32-bit P8X32A microcontroller
• Replaceable crystal for operation at custom speeds.  (Includes 5 MHZ crystal)
• Includes a breadboard for custom circuits.
• Includes keyboard, mouse, audio, and video ports for easy to set up user interfaces.
• Two PS/2 connectors for mouse and keyboard
• Ground post for oscilloscope hookup

Application Ideas:

• Developing applications for the P8X32A microcontroller

Details

• 32 KB EEPROM
• 3.3V and 5V regulators with on/off switch
• Serial over USB interface
• VGA and composite video outputs
• Stereo output with headphone amplifier
• Electret microphone
• 8 LEDs (shared with VGA pins)
• Reset pushbutton
• 6-9 VDC
• Dimensions: 3 x 3 in (76.2 x 76.2 mm)
• Operating Temperature: 32° to 158° F (0° to 70° C)

Download	Details	More Info
	Propeller Demo Board Test Code - 38.83 KB | updated: 25 Sep 2012 - 1:04 pm
	Propeller Demo Board Schematic - 217.63 KB | updated: 08 Nov 2012 - 9:18 am
