Robotics with the Boe-Bot Parts Kit

This compact, high-quality chassis kit turns any of our Board of Education development platforms into a rolling robot.  The included electronics pack includes all of the components needed to build three sensor systems for autonomous roaming robot.

Key Features

• Upgrades your Propeller Board of Education or BASIC Stamp Board of Education Full Kit into a rolling robot
• Also compatible with the BASIC Stamp HomeWork Board or Board of Education Shield for Arduino with a few extra parts (see Notes under Details)
• Three sensor systems (touch whiskers, light sensors, infrared object detectors) let your robot roam on its own
• Sturdy brushed-aluminum chassis features holes and slots for mounting sensors and accessories
• Free tutorials and example code for BASIC Stamp and Propeller
• Replacement components are available for easy maintenance

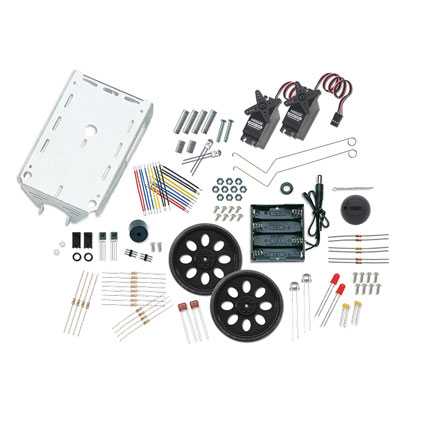

Kit Contents

• 1 - Boe-Bot Robot Chassis
• 2 - Parallax continuous rotation servos
• 2 - Plastic wheel and tire sets
• 1 - 1" tail wheel
• 1 - 4 AA Cell Battery Holder
• 2 - Whisker wires for touch sensors
• 2 - Phototransistors for light sensors
• 2 - IR Transmitter Assembly Kits
• 2 - Infrared Receivers for object sensors
• 2 - Pushbuttons, LEDs, and a piezospeaker
• 2 - Passive components (resistors, capacitors, 3-pin headers, and jumper wires)
• 2 - All the required hardware (screws, standoffs, spacers, nuts. washers, and grommets)

Note: If using a BASIC Stamp HomeWork Board, you will also need a 4 AA Battery Holder with Tinned Leads and two additional 3-Pin Single Row Headers.  If using the Board of Education Shield for Arduino, you will also need one Boe-Boost module, three 1/2" nylon spacers, three 4/40 nylon nuts, and three 4/40 7/8" panhead screws.  The Robotics Shield Kit is a complete option for Arduino Uno, Mega, and Duemilanove modules.

Downloads & Documentation

Product Specific Downloads

Download	Details	More Info
	Boe-Bot Robot Safety Tips - 62.59 KB | updated: 04 Sep 2014 - 6:30 pm
	Getting Started with Stamps in Class - Help excerpt - 1.06 MB | updated: 25 Sep 2012 - 3:43 pm
	Boe-Bot Light Sensors BS2 Example Code - 23.36 KB | updated: 25 Sep 2012 - 3:40 pm
	What's a Microcontroller? Activities with Boe-Bot Parts - 62.64 KB | updated: 25 Sep 2012 - 3:37 pm
	Robotics with the Boe-Bot Text - 4.35 MB | updated: 25 Sep 2012 - 3:23 pm
