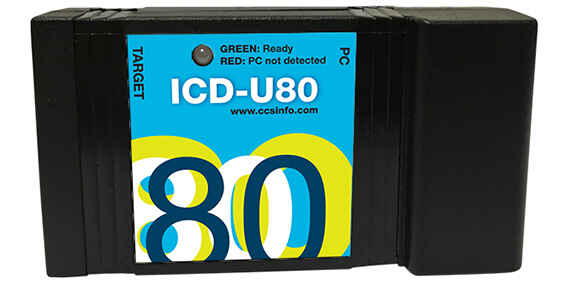

ICD-U80 In-Circuit Programmer/Debugger

ICD-U80 is a complete In-Circuit Programming and In-Circuit Debugging solution for Microchip's PIC^® MCUs and dsPIC^® DSCs. ICD-U80 debug support covers all targets that have debug mode when used in conjunction with the C-Aware IDE Compilers. The unit also provides in-circuit serial programming (ICSP™) support for all Flash chips.



ICD-U80 Advantages:

• Accelerated programming speed using a 140MHz internal processor
• Integrated Vdd generator to supply 1.5-5.5V and 400mA to target
• Software controlled power to target - no jumpers to change
• Fully integrated with the CCS C-Aware IDE or can be used stand-alone
• Programming and debugging support for Microchip PIC^® MCU, dsPIC^® DSCs, & flash devices
• Programming support for Microchip PIC32 and 8-bit AVR^® microcontrollers (HVSP interface is not supported)
• Powers and connects with USB
• Includes FREE CCSLOAD Software
• Data Streaming - Obtain real-time diagnostic data, and more...
• RoHS compliant

 CCSLOAD FREE programmer control software supports the ICD-U80 and offers many new key features including; powerful command line options in Windows/Linux, extensive diagnostics, easy to use production interface, and enhanced security options.

• Easy to use GUI interface
• Include configuration fuses in the programming
• Optionally can verify hex file CRC's to ensure the file was not corrupted
• Optionally can verify chip is actually read protected after programming
• Can program encrypted hex files to reduce the chance of reverse engineering
• Serial numbering and logging built into the software
