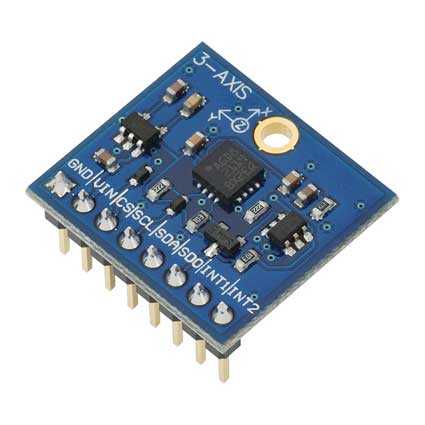

Gyroscope Module 3-Axis L3G4200D

Raw angular rate and temperature data measurements are accessed from the selectable digital I2C or SPI interface.  The small package design and SIP interface accompanied by the mounting hole make the sensor easy to integrate into your projects.  Designed to be used with a variety of microcontrollers, the module has a large operating voltage window.

Key Features:

• 3-axis angular rate sensor (yaw, pitch & roll) make it great for model aircraft navigation systems.
• Supports both I2C and SPI for whichever method of communication you desire.
• Three selectable scales: 250/500/2000 degrees/sec (dps)
• Embedded power down and sleep mode to minimize current draw
• 16 bit-rate value data output
• 8-bit temperature data output

Application Ideas:

• UAV, IMU systems
• Robotics
• 3D motion control
• Gaming
• Virtual reality input devices

Details

• Power Requirement: 2.7 to 6.5 VDC
• Current draw: 6.7mA @ 3.3VDC, 7mA @ 5VDC
• Communication: I2C (up to 400kHz) or SPI (10MHz; 4 & 3 wire)
• Dimensions: 0.85 x 0.80 in (2.16 x 2.03cm)
• Operating temp range: -40 to +185 °F (-40 to +85 °C)

Download	Details	More Info
	L3G4200D 3-Axis Gyroscope Design Files - 117.99 KB | updated: 17 Oct 2014 - 9:34 am
	L3G4200D Gyroscope Application Note - 1 MB | updated: 21 Sep 2012 - 1:24 pm
	L3G4200D Gyroscope Technical Note - 3.34 MB | updated: 21 Sep 2012 - 1:23 pm
	L3G4200D Gyroscope BASIC Stamp Example Code - 1.64 KB | updated: 21 Sep 2012 - 1:21 pm
	L3G4200D Gyroscope SPIN Example Code - 8.64 KB | updated: 21 Sep 2012 - 1:20 pm
	L3G4200D Gyroscope Manufacturer Datasheet - 1.25 MB | updated: 21 Sep 2012 - 1:18 pm
	L3G4200D Gyroscope Documentation - 103.84 KB | updated: 23 Apr 2013 - 11:12 am

Additional Resources

Gyroscope Module 3-Axis L3G4200D Kickstart for BS2, SPIN, Arduino (Learn.Parallax)
