DIL44/QFN44-2 ZIF-CS Adaptör Soketi

Elnec
Fiyat
:
219,00 USD + KDV
KDV Dahil
:
258,42 USD
Havale ile
:
258,42 USD
Paylaş:
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler

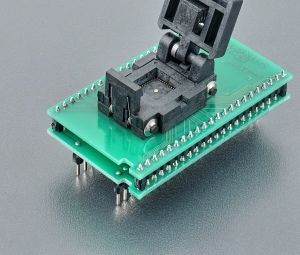

  • DIL44/QFN44-2 ZIF-CS Adaptör Soketi

    • Universal adapter, assigned for devices in QFN44/MLF44 package (for example Microchip PIC 16xxx, PIC 18xxx, PIC 24xxx, dsPIC series)
    • operation (mechanical) life of ZIF socket - 5.000 actuations
    • made in Slovakia
    Ord. no.70-0397
    SocketZIF QFN44, ClamShell type
    Bottom2 rows, 2x 22 pins, square, 0.6x0.6mm, rows spacing 600mil
    ClassUniversal
    SubclassDIL/QFN (MLF)

    Adapter manual
    • Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
    • Open the adapter ClamShell ZIF socket. Insert the device into it (place device on contacts). The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bevelled corner or by any combination of them.
    • Visually check interconnection between device and adapter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
    • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ClamShell ZIF socket can damage the programmed device.
    • To take out the device, open adapter ClamShell ZIF socket and remove device from it.
    • When you finish work with adapter, remove it from the device programmer ZIF socket.
    • Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.
    • For handling with the device we recommended to use a vacuum pick up tool.
    • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%..80%, non condensing.
    • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.


    Accepted package(s)
    QFN44Package
    Design

    Usable for programmer(s):
    BeeHive208SBeeHive204BeeProg2BeeProg2CBeeProg+BeeHive8SBeeHive4+BeeHive4
    BeeProgJetProg (DIL48, ISP)
