WIZ610Wi

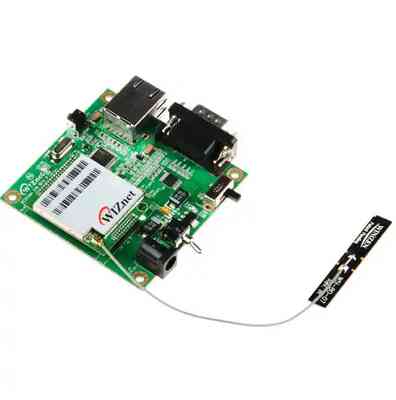

Evaluation Board for the WIZ610Wi WiFi module (With antenna)Features
- Stand-alone typed 802.11b/g wireless LAN module
- Ethernet to Wireless Bridging : Enable wired network device to have wireless communication interface
- Supports Serial Interface for "Serial to Wireless" application
- Supports AP/Station/Gateway mode
- 54Mbps data rate and Max.20Mbps Effective Data Transmission
- Full-Featured Network Protocol Stack
- Built-in Web server for configuration via standard web browser
PRODUCT UPDATE:
WIZ610wi, WIZnet's 802.11b/g wireless module has been upgraded to reduce its booting speed to a mere 17 seconds. To apply this improved function, you need to upgrade the boot-loader of the WIZ610wi. Downloads
Specifications
Wireless Specifications
Wireless Standards
IEEE 802.11b; 802.11g
Frequency Range
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
2.412GHz ~ 2.484GHz (Japan)
Output Power
14dBm@802.11b(1~11Mbps)
14dBm@802.11g(1~54Mbps)Receive Sensitivity
802.11b -65dBm@11Mbps
802.11g -76dBm@54MbpsData Rates With
Automatic Fallback54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps,
12Mbps, 9Mbps, 6Mbps, automatically fallback to
5.5Mbps, 2Mbps, 1Mbps11Mbps, 5.5Mbps, 2Mbps, 1Mbps
Range
Up to 200m/2dBi antenna gain
Modulation Techniques
OFDM, CCK
Serial Interface
Interface
UART
CMOS (Asynchronous) 3.3V-level signals,
rate is software selectableSerial Line Formats
7 or 8 data bits, 1-2 Stop bits
Parity
odd, even, none
Flow Control
XON/XOFF (software), CTS/RTS (hardware), none
Network Interface
Interface
MII, Wireless 802.11b, 802.11g
Protocols Supported
TCP, Telnet, DHCP, HTTP, SMTP, TFTP
Management
HTTP / Telnet
Security
WEP 64/128bit, WPA/WPA2 PSK/AES/TKIP, 802.1x(Radius)
Power Consumption
Average Consumption
3.3V summary(W)
10Mbps HD(Traffic) 0.27A 0.42
100Mbps HD(Traffic) 0.119A 0.39Environmental
Operating range,WLAN
0~55°C
Storage range
-20~ 77°C
